Angular Gripper Kit

Angular Gripper Kit

This SMC pneumatic gripper kit is scaled to the power, price and performance of the GEARS Invention and Design System.

The kit includes all the components needed to add pneumatic gripping capabilities to the GEARS Invention and Design System.

Angular Gripper Component Specifications
• Single Acting/Normally Open
• Bore:16mm/0.625"
• Gripping Moment:0.31 N-m @ 0.5 MPa /2.75 pound-inch @72.5 psi
• Opening Angle:30 deg.
• Weight:92g/3.25 oz.
• Over 70 strokes/cycles from 1 pneumatic reservoir!

Click here to download 16mm Gripper Specifications

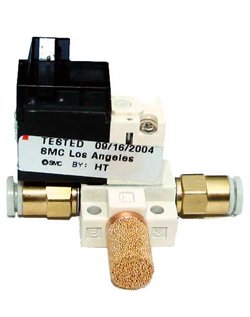

3/2 Solenoid Valve Component Specifications
• Coil Power Consumption: 12 Volt 1 Watt
• 2 Position Normally Closed
• ON: 3.5 milliseconds, OFF: 2 milliseconds
• Operating Pressure:0.7 MPa/100 psi max
• Cv 0.011
• Weight: 21g/0.75oz.

Click here to download 3/2 Solenoid Valve Specifications

Note:
The Pneumatic Gripper Kit also includes:
• (2)Quick Connects to attach tubing
• 4mm Tubing
• "Y" Connector
• Exhaust Muffler (Protects against dust infiltration)

These components can be used simultaneously with the standard pneumatic system that is included with the GEARS-IDS kit.

Click here to download an Assembly Manual.

Shipping Weight: 15 oz.

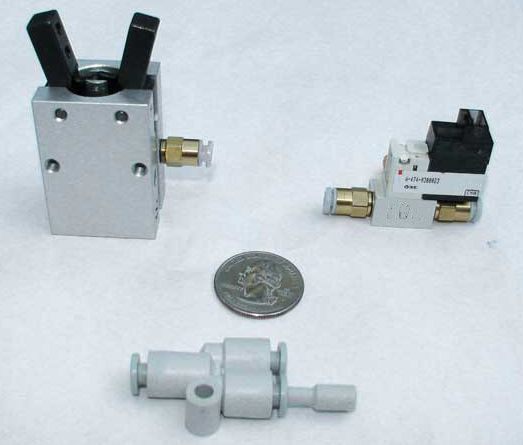

Gripper Kit Components

The Angular Gripper and the 3/2 Solenoid Valve
